401010.8500 Surfmist® Aluminium Rivets with Steel Stem - Large Flange Head
Large Flange Head Aluminium Rivets with Steel Zinc Plated stems are multi-purpose rivets suitable for general fastening in light to medium duty applications. They are specifically designed for use where a larger bearing area is required. The aluminium body provides corrosion resistance for use in internal and external applications. Available Painted Surfmist.
• Quick and Easy to use
• Can be fixed from one side
• Draws materials together during installation removing air gaps and forming a tight clamping hold
• Can be used for applications both internally and externally
• Complies with IFI-114
• Zinc Plated Mandrels are RoHS compliant
• Can be fixed from one side
• Draws materials together during installation removing air gaps and forming a tight clamping hold
• Can be used for applications both internally and externally
• Complies with IFI-114
• Zinc Plated Mandrels are RoHS compliant

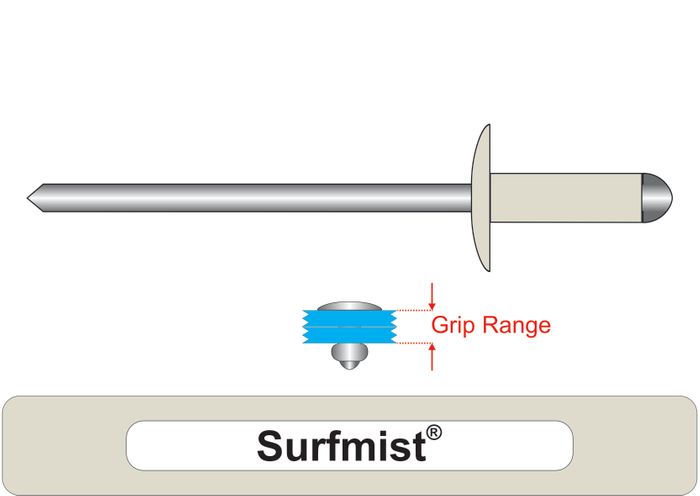

All rivets have a minimum and maximum thickness of materials for which they are designed to fix, this is known as the Grip Range of the rivet.
Using a rivet with the correct Grip range for your application will ensure ease of installation and that the maximum holding power is achieved.
Drill the correct size hole for your chosen rivet and ensure the total thickness of the materials being fastened together is within the grip range of the rivet selected.
Using a rivet with the correct Grip range for your application will ensure ease of installation and that the maximum holding power is achieved.
Drill the correct size hole for your chosen rivet and ensure the total thickness of the materials being fastened together is within the grip range of the rivet selected.
• Ideal for use in cool room and sandwich panel applications as well as attaching fibreglass or soft timber panelling to metal
| Size | Pack Type | Colour | 480 Y Material | 540 Y US Code | 550 Y Grip Range (mm) | 560 Y Drill Size | 570 Y Head Diam. | Code |
|---|---|---|---|---|---|---|---|---|
| 3.2mm x 9.9mm |
|
