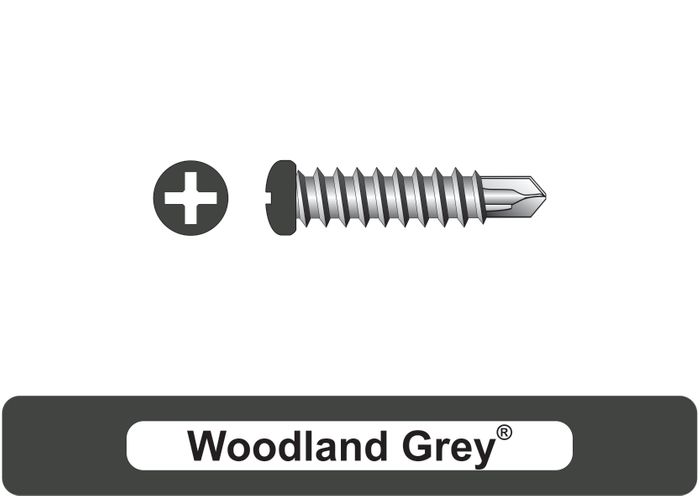

220310.9300 Woodland Grey® SteelMates® - Mini Corry Trim Head Screws
Specially designed for valley fixing Mini Corrugated profiles to metal and the 30mm length is also suitable for fixing to timber. These screws feature a mini Trim head which conforms to the valley of the profile. Painted to match all popular prepainted metal roofing, cladding & fencing profile colours.
• Features a heavy duty 10g shank with a very small diameter, low profile head
• Trim head provides a neat, tidy and strong connection
• Fast drilling and easy to use
• Multi purpose for fixing into both metal and timber substrates
• High corrosion resistant coating suitable for use both internally and externally
• Complies with AS3566.1 & 2
• Trim head provides a neat, tidy and strong connection
• Fast drilling and easy to use
• Multi purpose for fixing into both metal and timber substrates
• High corrosion resistant coating suitable for use both internally and externally
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into steel.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into steel.
• Originally designed for valley fixing Mini Corrugated profiles to metal or timber these screws are also ideal for applications where a very small head diameter is preferred.
| Size | Coating | Pack Type | Colour | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 10g-16 x 20mm |
|
||||||
| 10g-16 x 30mm |
|
