220550.2200 Classic Cream™ TimberMates® - Cyclone Assemblies for Square Rib

220550.2200 Classic Cream™ TimberMates® - Cyclone Assemblies for Square Rib

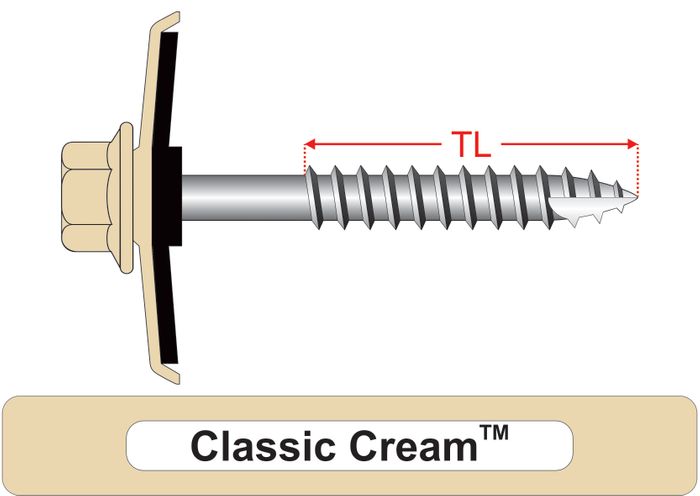

For crest fixing square rib roofing profiles to timber battens in cyclonic regions. They are designed for self-drilling and fastening into timber. The assemblies comprise a heavy duty #14 Gauge fastener with a metal cyclone plate and an EPDM sealing washer. Popular sizes are stocked painted to match prepainted metal roofing & cladding profile colours. All other sizes/colour combinations are available upon request. Use longer lengths for insulated roofing applications.

1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
• For fixing Square Rib roofing profiles to timber battens in cyclone prone areas
• Longer lengths are for crest fixing Square Rib insulated roofing panels to timber battens purlins in cyclone prone areas
Size Coating Pack Type Colour 510 Y Rec. Embedment in Timber 520 Y Thread Length (TL) 530 Y Driver Tool Code
14g-10 x 65mm
