220520.8300 Shale Grey™ TimberMates® - Hex Seal
These screws are designed for self-drilling and fastening into timber or thin metal up to 0.55mm. Assembled with EPDM Seal for waterproof installations. Ideal for use in fixing metal roofing and cladding, fibreglass or polycarbonate sheeting in housing, sheds, carports etc., Painted to match prepainted metal roofing, cladding & fencing profile colours. All other sizes and colour combinations can be painted upon request. Painted to match prepainted metal roofing & cladding profile colours. All other sizes and colours are available upon request. Use longer lengths for insulated roofing applications.
• Assembled with EPDM Seal for waterproof connections
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a wide range of sizes and lengths
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a wide range of sizes and lengths
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• Valley fixing wall cladding profiles to timber girts or battens or to light gauge metal battens up to 0.55mm thick
• Crest fixing roofing profiles to timber purlins or battens or to light gauge metal battens up to 0.55mm thick
• Crest fixing roofing profiles to timber purlins or battens or to light gauge metal battens up to 0.55mm thick

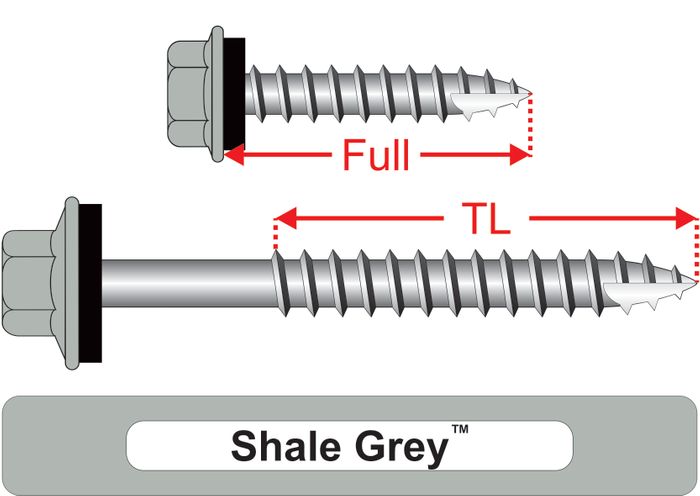

| Size | Coating | Pack Type | Colour | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 10g-12 x 25mm |
|
||||||
| 12g-11 x 25mm |
|
||||||
| 12g-11 x 50mm |
|
||||||
| 12g-11 x 65mm |
|
||||||
| 14g-10 x 50mm |
|
||||||
| 14g-10 x 65mm |
|
