220500.5300 Loft® TimberMates® - Crest-Lok™ Roofing Screws
These screws are designed for self-drilling and fastening into timber or thin metal up to 0.55mm and feature a Type 17 self-drilling point. For crest fixing roofing profiles to timber or light gauge metal battens. The Hex Washer head provides a heavy duty, stable driving fixing with a wide surface clamping area. Painted to match prepainted metal roofing, cladding & fencing profile colours. All other sizes and colour combinations can be painted upon request.
• Fast drilling and easy to use
• Assembled with EPDM Seal for waterproof connections
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• Available in a range of sizes and lengths
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
• Assembled with EPDM Seal for waterproof connections
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• Available in a range of sizes and lengths
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• Use 50mm for fixing corrugated profiles to timber or thin metal battens up to approximately 0.55mm.
• 50mm length can also be used for square rib profiles (maximum crest height of 30mm) to thin metal battens up to approximately 0.55mm.
• Use 65mm
• 50mm length can also be used for square rib profiles (maximum crest height of 30mm) to thin metal battens up to approximately 0.55mm.
• Use 65mm

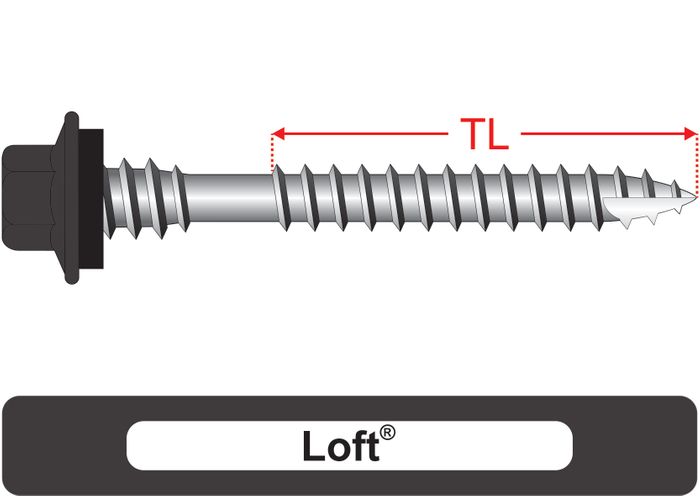

| Size | Coating | Pack Type | Colour | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 12g-11 x 50mm |
|
||||||
| 12g-11 x 65mm |
|
