401200.9300 Woodland Grey® Steel Rivets with Steel Stem - Dome Head
These multi-purpose rivets suitable for general fastening in medium to heavy duty applications. They are recommended for fixing where a stronger rivet is required. Painted to match all popular prepainted metal roofing, cladding & fencing profile colours. These Zinc Plated Steel/Steel rivets are mainly for interior uses but can be used externally if painted or protected.
• Quick and Easy to use
• Can be fixed from one side
• Draws materials together during installation removing air gaps and forming a tight clamping hold
• Available in a range of sizes, lengths and colours for a multitude of applications
• Complies with IFI-114
• Zinc Plated Mandrels are RoHS compliant
• Can be fixed from one side
• Draws materials together during installation removing air gaps and forming a tight clamping hold
• Available in a range of sizes, lengths and colours for a multitude of applications
• Complies with IFI-114
• Zinc Plated Mandrels are RoHS compliant

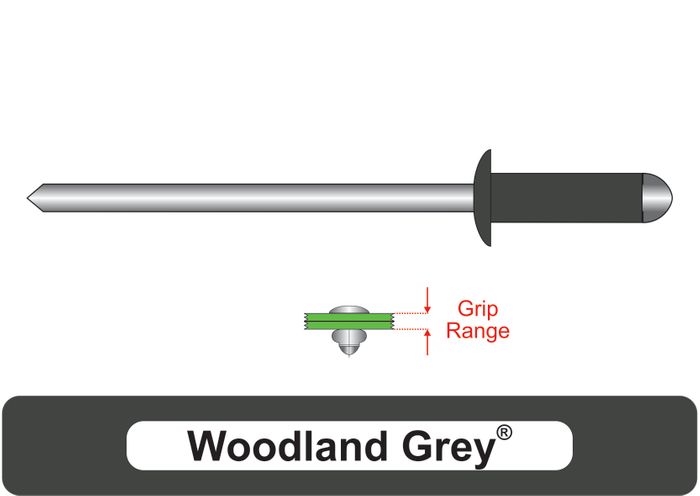

All rivets have a minimum and maximum thickness of materials for which they are designed to fix, this is known as the Grip Range of the rivet.
Using a rivet with the correct Grip range for your application will ensure ease of installation and that the maximum holding power is achieved.
Drill the correct size hole for your chosen rivet and ensure the total thickness of the materials being fastened together is within the grip range of the rivet selected.
Using a rivet with the correct Grip range for your application will ensure ease of installation and that the maximum holding power is achieved.
Drill the correct size hole for your chosen rivet and ensure the total thickness of the materials being fastened together is within the grip range of the rivet selected.
• Ideal for metal cabinets and shelving, brackets, supports, saddles, hinges, handles, signs, automotive work and general Sheetmetal applications
• Can be used in a wide range of Sheetmetal applications in Heating, Cooling, Air Conditioning and other
• Can be used in a wide range of Sheetmetal applications in Heating, Cooling, Air Conditioning and other
| Size | Pack Type | Colour | 480 Y Material | 540 Y US Code | 550 Y Grip Range (mm) | 560 Y Drill Size | Code |
|---|---|---|---|---|---|---|---|
| 3.2mm x 8.2mm |
|
