220260.3200 Dune® SteelMates® - Cyclone Assemblies for Square Rib

220260.3200 Dune® SteelMates® - Cyclone Assemblies for Square Rib

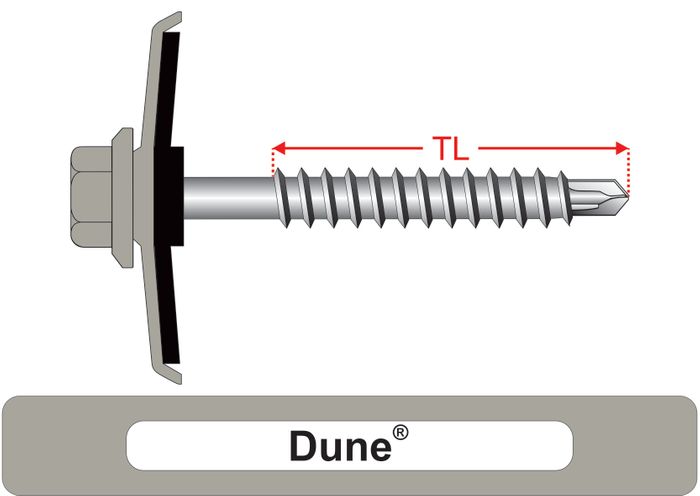

For crest fixing square rib roofing profiles to metal purlins in cyclonic regions. These assemblies comprise a heavy duty #14 Gauge fastener with a metal cyclone plate and an EPDM sealing washer. Painted to match prepainted metal roofing & cladding profile colours. All other sizes and colour combinations are available upon request. Use longer lengths for insulated roofing applications.

1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• For fixing square rib metal roofing profiles to steel purlins in cyclone prone areas
• Longer lengths for crest fixing square rib insulated roofing panels to steel purlins in cyclone prone areas
Size Coating Pack Type Colour 500 Y Drilling Capacity in Steel 520 Y Thread Length (TL) 530 Y Driver Tool Code
14g-10 x 53mm
14g-10 x 65mm
