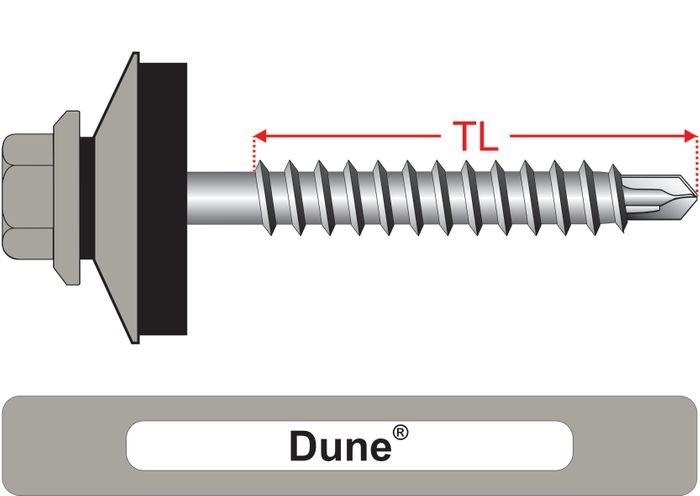

220240.3200 Dune® SteelMates® - Hex & 25mm Multi-Seal

220240.3200 Dune® SteelMates® - Hex & 25mm Multi-Seal

Assembled with 25mm Multi-Seal Washers these screws are designed for fixing insulated roofing panels, ridge cappings and flashings to steel purlins up to 5.5mm thick. Painted to match all popular prepainted metal roofing & cladding profile colours. All other sizes can be painted upon request. Matt and Metallic colours also available upon request.

1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• For fixing metal roofing profiles to steel purlins in higher wind classifications
• Longer lengths for crest fixing insulated roofing panels to steel purlins
Size Coating Pack Type Colour 500 Y Drilling Capacity in Steel 520 Y Thread Length (TL) 530 Y Driver Tool Code
14g-10 x 53mm
14g-10 x 65mm
14g-14 x 115mm
14g-14 x 135mm
14g-14 x 150mm
14g-14 x 175mm
14g-14 x 200mm
14g-14 x 230mm
14g-14 x 260mm
