401100.9000 Wilderness® Multi-Grip Aluminium Rivets with Steel Stem - Dome Head
These multi-purpose rivets are for general fastening in light to medium duty uses and feature:- • Multiple grip ranges for a wide range of material thicknesses • A bulbing formation which fills oversized or irregular sized holes • A stem that locks in the body providing vibration & weather resistance The aluminium body provides corrosion resistance for use in internal & external applications. Painted to match prepainted metal roofing, cladding & fencing profile colours.
• The Multi-Grip feature allows for one rivet to be used in multiple material thicknesses as the 2 step double bubble effect covers a Grip Range that would normally require 2 to 3 different rivets.
• Additionally the bulbing formation of these rivets will fill slightly oversized or irregular sized holes.
• Reduced inventories as well as overcoming and eliminating operator errors.
• Painted to match prepainted metal, roofing, cladding, fencing, flashings and cappings
• Complies with IFI-116
• Zinc Plated Mandrels are RoHS compliant
• Additionally the bulbing formation of these rivets will fill slightly oversized or irregular sized holes.
• Reduced inventories as well as overcoming and eliminating operator errors.
• Painted to match prepainted metal, roofing, cladding, fencing, flashings and cappings
• Complies with IFI-116
• Zinc Plated Mandrels are RoHS compliant

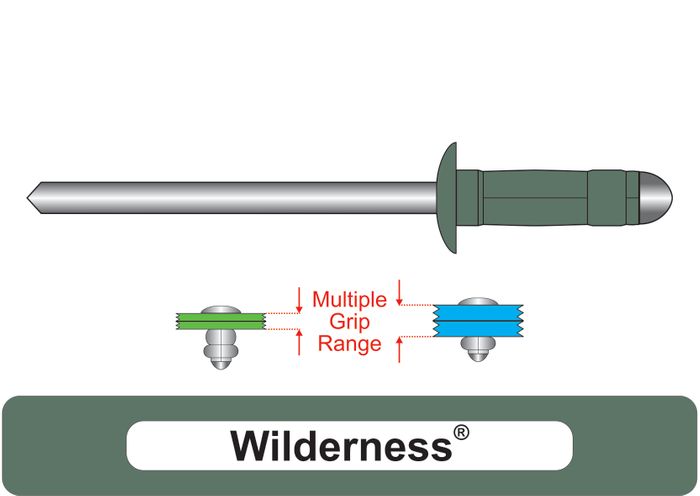

All rivets have a minimum and maximum thickness of materials for which they are designed to fix, this is known as the Grip Range of the rivet.
Using a rivet with the correct Grip range for your application will ensure ease of installation and that the maximum holding power is achieved.
Drill the correct size hole for your chosen rivet and ensure the total thickness of the materials being fastened together is within the grip range of the rivet selected.
Using a rivet with the correct Grip range for your application will ensure ease of installation and that the maximum holding power is achieved.
Drill the correct size hole for your chosen rivet and ensure the total thickness of the materials being fastened together is within the grip range of the rivet selected.
• Typical applications include fixing roof capping's and flashings, garden sheds, flywire doors and screens, hinges, brackets, gates, signs, caravans, mobile homes etc.
• Ideal for fences, carports and sheet metal applications.
• Can be used in a wi
• Ideal for fences, carports and sheet metal applications.
• Can be used in a wi
Size | Pack Type | Colour | 480 Y Material | 540 Y US Code | 550 Y Grip Range (mm) | 560 Y Drill Size | Code |
---|---|---|---|---|---|---|---|
3.2mm x 8.2mm |
|
||||||
4.0mm x 10.5mm |
|
