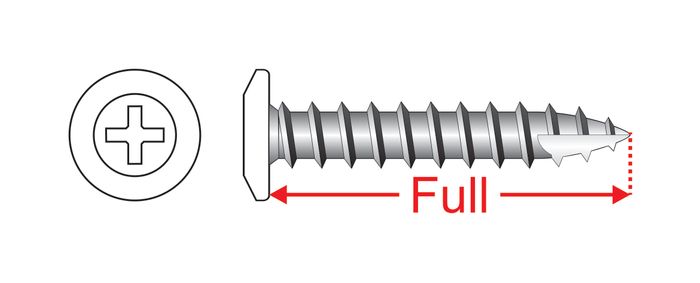

220560.8500 Surfmist® TimberMates® - Wafer Head
These screws feature a Low profile head for a smooth finish with less obstruction. They are designed for self-drilling and fastening into timber but are also capable of self-drilling through thin metal up to approximately 0.55mm. Can be driven by hand or power tool. Stocked painted SurfMist but can be painted upon request to match all popular prepainted metal roofing, cladding & fencing profile colours.
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• High corrosion resistant coating for external use
• Complies with AS3566.1 & 2
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• High corrosion resistant coating for external use
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• Ideal for fixing signs, brackets, hinges, fencing and cladding materials to timber
• Can be used for timber pickets or palings to timber and other timber to timber applications
• Universal screw for general fastening into timber
• Can be used for timber pickets or palings to timber and other timber to timber applications
• Universal screw for general fastening into timber
| Size | Coating | Pack Type | Colour | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 10g-12 x 25mm |
|
