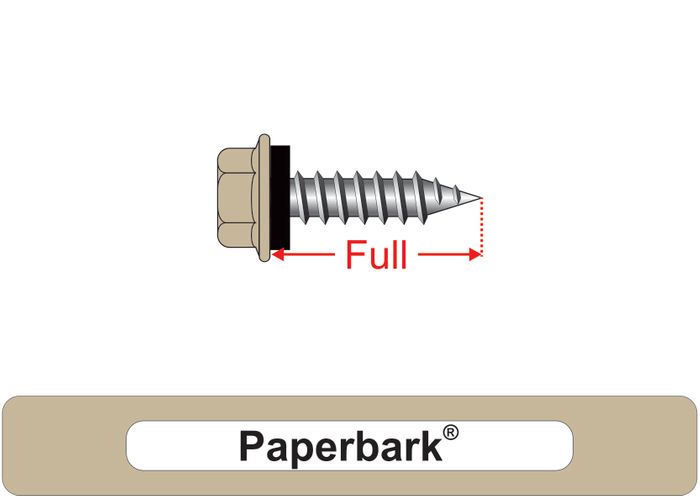

220580.8100 Paperbark® StitchMates® - Hex Seal, Needle Point, Twinfast Thread
These screws feature a sharp Needle point for fast drilling, a Twinfast thread for rapid installation when fixing to thin metal up to 0.75mm thick but will also self drill and fasten into timber. Assembled with EPDM Seal for waterproof connections Painted to match all popular prepainted metal roofing & cladding profile colours.
• Instant piercing
• Fast drilling and easy to use
• Won't skid, wander or slip
• Minimal drilling swarf
• Assembled with EPDM Seal for waterproof connections
• High corrosion resistant coating designed for use externally
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• Won't skid, wander or slip
• Minimal drilling swarf
• Assembled with EPDM Seal for waterproof connections
• High corrosion resistant coating designed for use externally
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is 1,000 r.p.m for fixing into timber and 2,000+ r.p.m. for fixing into thin metal up to 0.75mm thick.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is 1,000 r.p.m for fixing into timber and 2,000+ r.p.m. for fixing into thin metal up to 0.75mm thick.
• Designed for attaching flashings, capping's etc together or to metal profiles.
• Also can be used for stitching roof profile crests together where large purlin/batten spacings exist or for pinning roof sheets at the ridge by valley fixing into timb
• Also can be used for stitching roof profile crests together where large purlin/batten spacings exist or for pinning roof sheets at the ridge by valley fixing into timb
| Size | Coating | Pack Type | Colour | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 10g-12 x 20mm |
|
