220230.4100 Gully® SteelMates® - Hex Seal, Coarse Thread
These screws feature a Coarse Thread for fast installation and increased holding power when fixing into metal thicknesses less than or equal to their drilling capacity. Assembled with EPDM Seal for waterproof installations such as valley fixing wall cladding or crest fixing roofing profiles. Painted to match prepainted metal roofing & cladding profile colours. All other sizes and colours are available upon request.
• Fast drilling and easy to use
• Assembled with EPDM Seal for waterproof connections
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
• Assembled with EPDM Seal for waterproof connections
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• Designed for fixing metal roofing and wall cladding to steel purlins and girts in steel frame sheds and buildings.

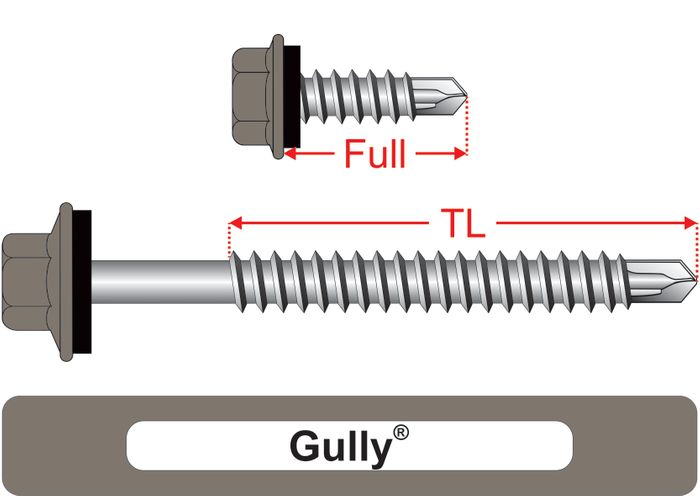

| Size | Coating | Pack Type | Colour | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 10g-16 x 16mm |
|
||||||
| 10g-16 x 25mm |
|
||||||
| 12g-14 x 20mm |
|
||||||
| 12g-14 x 55mm |
|
||||||
| 14g-10 x 53mm |
|
