220540.8100 Paperbark® TimberMates® - Cyclone Assemblies for Corrugated

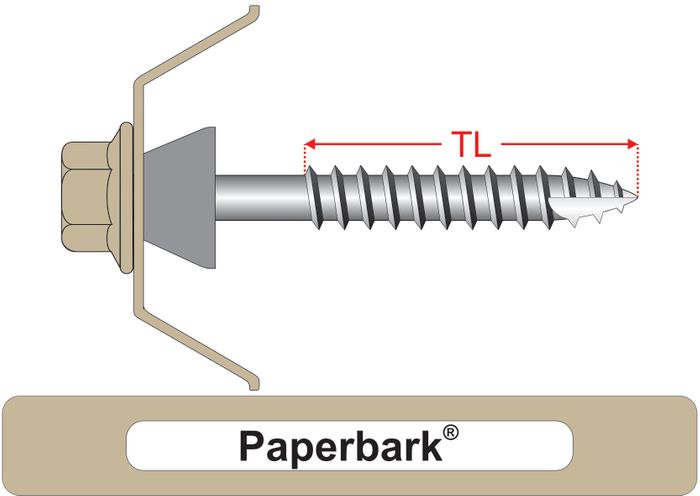

For crest fixing corrugated roofing profiles to timber battens in cyclonic regions. They are designed for self-drilling and fastening into timber battens. The assemblies comprise a heavy duty #14 Gauge fastener with a metal cyclone plate and an EPDM sealing washer. Painted to match prepainted metal roofing & cladding profile colours. All other sizes/colour combinations are available upon request. Use longer lengths for insulated roofing applications.
• Assembled with Cyclone washers to suit Corrugated roofing profiles for cyclone prone areas
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in other sizes and lengths upon request
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in other sizes and lengths upon request
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber.
• For fixing corrugated metal roofing profiles to timber battens in cyclone prone areas
• Longer lengths are for crest fixing corrugated insulated roofing panels to timber battens purlins in cyclone prone areas
• Longer lengths are for crest fixing corrugated insulated roofing panels to timber battens purlins in cyclone prone areas
| Size | Coating | Pack Type | Colour | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 14g-10 x 50mm |
|
