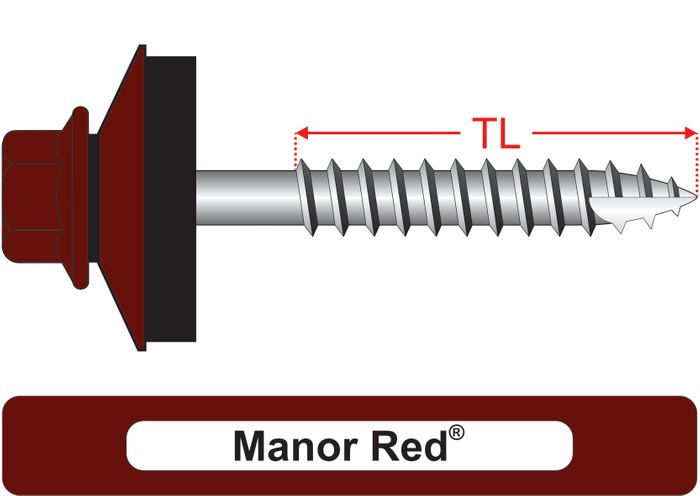

220530.5500 Manor Red® TimberMates® - Hex & 25mm Multi-Seal

220530.5500 Manor Red® TimberMates® - Hex & 25mm Multi-Seal

These screws are designed for self-drilling and fastening into timber or thin metal up to 0.55mm. Assembled with 25mm Multi-Seal Washers they are designed for fixing metal roofing profiles, insulated roofing panels, ridge capping's and flashings to timber purlins or battens. Painted to match prepainted metal roofing & cladding profile colours. Other sizes and colour combinations are available upon request. Use longer lengths for insulated roofing applications.

1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• For fixing metal roofing profiles to timber battens in higher wind classifications
• Longer lengths for crest fixing insulated roofing panels to timber battens
Size Coating Pack Type Colour 510 Y Rec. Embedment in Timber 520 Y Thread Length (TL) 530 Y Driver Tool Code
14g-10 x 50mm
14g-10 x 65mm
14g-10 x 125mm
14g-10 x 150mm
14g-10 x 175mm
14g-10 x 200mm
14g-10 x 230mm
14g-10 x 265mm
