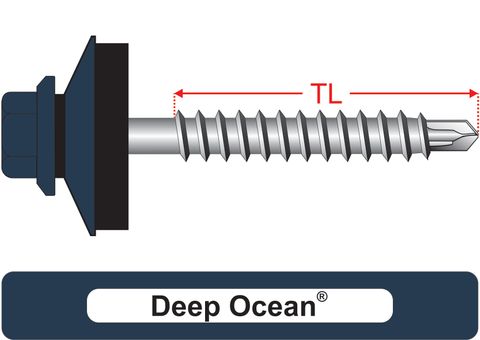

220240.2900 Deep Ocean® SteelMates® - Hex & 25mm Multi-Seal
Assembled with 25mm Multi-Seal Washers these screws are designed for fixing insulated roofing panels, ridge cappings and flashings to steel purlins up to 5.5mm thick. Painted to match all popular prepainted metal roofing & cladding profile colours. All other sizes can be painted upon request. Matt and Metallic colours also available upon request.
• Fast drilling and easy to use
• Assembled with Multi-Seal for high strength, waterproof connections
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes, lengths and coatings for a multitude of applications both internally and externally
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
• Assembled with Multi-Seal for high strength, waterproof connections
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes, lengths and coatings for a multitude of applications both internally and externally
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• For fixing metal roofing profiles to steel purlins in higher wind classifications
• Longer lengths for crest fixing insulated roofing panels to steel purlins
• Longer lengths for crest fixing insulated roofing panels to steel purlins
| Size | Coating | Pack Type | Colour | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 14g-10 x 53mm |
|
||||||
| 14g-10 x 65mm |
|
||||||
| 14g-14 x 115mm |
|
||||||
| 14g-14 x 135mm |
|
||||||
| 14g-14 x 150mm |
|
||||||
| 14g-14 x 175mm |
|
||||||
| 14g-14 x 200mm |
|
||||||
| 14g-14 x 230mm |
|
||||||
| 14g-14 x 260mm |
|
