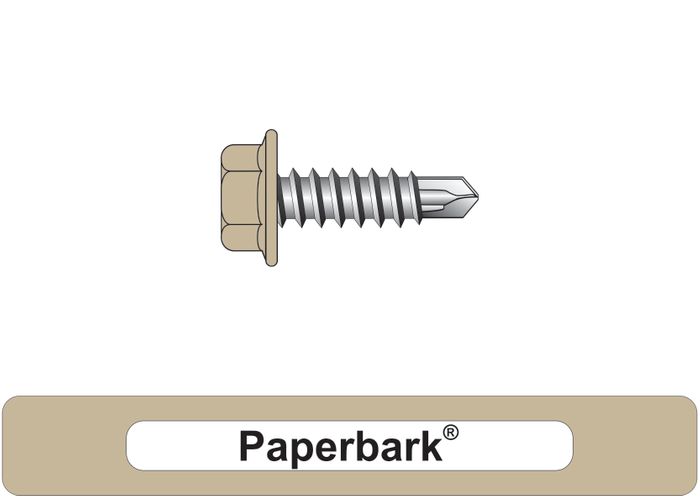

220220.8100 Paperbark® SteelMates® - Hex Head, Coarse Thread
These screws feature a Coarse Thread for fast installation and increased holding power when fixing into metal thicknesses less than or equal to their drilling capacity. The Hex Washer head provides a heavy duty, stable driving fixing with a wide surface clamping area. Painted to match all popular prepainted metal roofing, cladding & fencing profile colours. All other sizes can be painted upon request. Matt and Metallic colours also available upon request.
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• High corrosion resistant coatings are recommended for external use
• Complies with AS3566.1 & 2
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• High corrosion resistant coatings are recommended for external use
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• Suitable for a wide range of applications when fixing to metal substrates such as colorbond fencing, signs, brackets, conduit clips, steel battens, wall cladding
| Size | Coating | Pack Type | Colour | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 10g-16 x 16mm |
|
||||||
| 10g-16 x 25mm |
|
||||||
| 12g-14 x 20mm |
|
||||||
| 14g-14 x 22mm |
|
