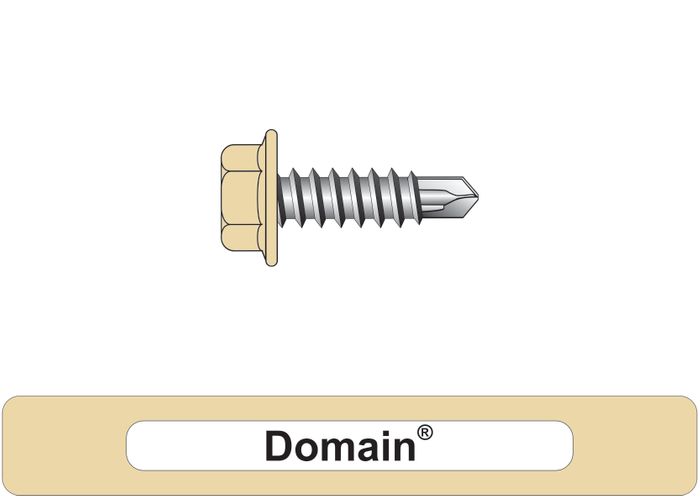

220220.3000 Domain® SteelMates® - Hex Head, Coarse Thread

220220.3000 Domain® SteelMates® - Hex Head, Coarse Thread

These screws feature a Coarse Thread for fast installation and increased holding power when fixing into metal thicknesses less than or equal to their drilling capacity. The Hex Washer head provides a heavy duty, stable driving fixing with a wide surface clamping area. Painted to match all popular prepainted metal roofing, cladding & fencing profile colours. All other sizes can be painted upon request. Matt and Metallic colours also available upon request.

1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• Suitable for a wide range of applications when fixing to metal substrates such as colorbond fencing, signs, brackets, conduit clips, steel battens, wall cladding
Size Coating Pack Type Colour 500 Y Drilling Capacity in Steel 520 Y Thread Length (TL) 530 Y Driver Tool Code
10g-16 x 16mm
