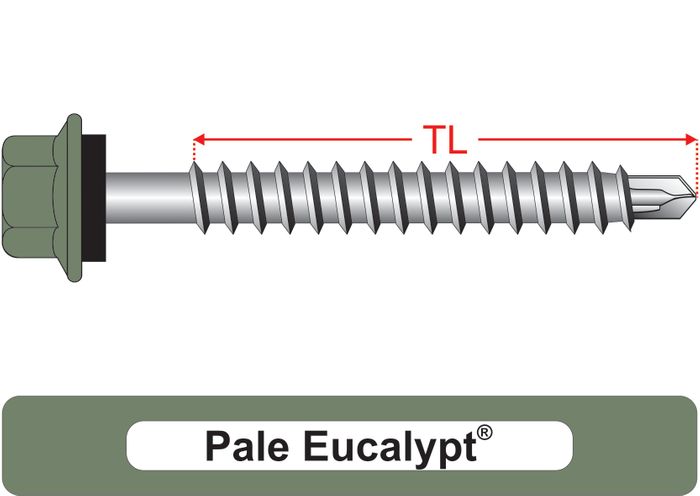

220110.8000 Pale Eucalypt® RoofMates® - Hex Seal, Roofing Screws
Recommended for fixing corrugated and square rib roof profiles to timber battens, thin metal battens or steel purlins up to 2.0mm thick. Painted to match all popular prepainted metal roofing, cladding & fencing profile colours. Matt and Metallic colours also available upon request.
• Longer length and thicker gauge for extra strength when fixing in thin metal or timber battens in higher wind classifications
• Fast drilling and easy to use
• Assembled with EPDM Seal for waterproof connections
• High Shear Strength
• High Withdrawal strength
• High Tensile Strength
• High Strip Torque
• High corrosion resistant coating
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• Assembled with EPDM Seal for waterproof connections
• High Shear Strength
• High Withdrawal strength
• High Tensile Strength
• High Strip Torque
• High corrosion resistant coating
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• For fixing corrugated and square rib roof profiles to timber battens, thin metal battens or steel purlins up to 2.0mm thick.
Size | Coating | Pack Type | Colour | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
---|---|---|---|---|---|---|---|
15g-12 x 55mm | 1.9mm | 45mm | 3/8" Hex |
SDX15055N PALEEUCALY
|
