300800 Drop-In Anchors - Non-Lipped
Drop In Anchors are designed for medium duty use in solid concrete or masonry where the depth of embedment may be limited by reinforcing materials, aggregate, etc., An internal expander cone encapsulated inside the anchor is set by using a setting tool to drive the cone to the bottom of the anchors' shaft allowing for hole depths to be minimized whilst still achieving the embedment depth required. An internal thread provides flexibility for a threaded rod, bolt or stud to complete the fastening.
• Hole depth is minimized
• No restriction on the fixture thickness that can be attached as threaded rod or machine threaded bolts or studs of any length can be used providing an extremely flexible fixing option
• Easy to instal
• Can be immediately loaded after installation, no downtime waiting for curing etc.,
• Threaded fastener component can be easily removed leaving the Drop in anchor flush with the substrate surface, threaded component can be re-installed if required
• Minimizes subsurface obstruction problems
• Available in a range of sizes for a multitude of applications
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• No restriction on the fixture thickness that can be attached as threaded rod or machine threaded bolts or studs of any length can be used providing an extremely flexible fixing option
• Easy to instal
• Can be immediately loaded after installation, no downtime waiting for curing etc.,
• Threaded fastener component can be easily removed leaving the Drop in anchor flush with the substrate surface, threaded component can be re-installed if required
• Minimizes subsurface obstruction problems
• Available in a range of sizes for a multitude of applications
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
Step 1:-
Select the correct size IDEAL Fasteners Carbide drill bit for your chosen diameter and length of Drop In Anchor.
Step 2:-

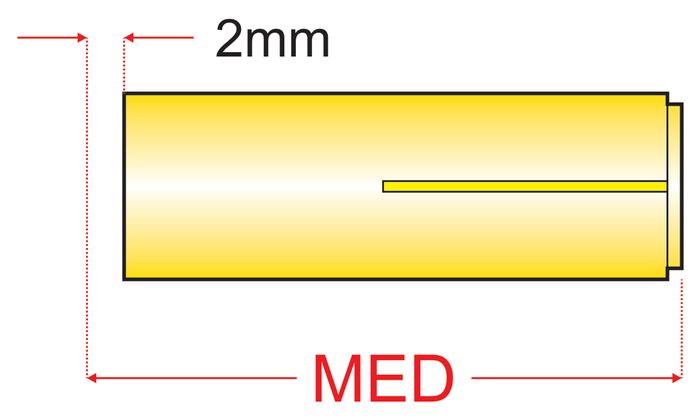

Using a Rotary Hammer tool or a suitable Impact tool, drill the correct size hole into the concrete or masonry substrate to a depth of a minimum of 2mm longer than the fastener length, clean the hole thoroughly with a wire brush, vacuum and/or blow pump.
Avoid drilling the hole too close to the edge of the masonry as the expansion action of the anchor during installation may cause splitting of the masonry.
Step 3:-
Place the anchor into the hole with the threaded end facing outwards, tap the anchor lightly to ensure it is seated in the bottom of the hole.
Step 4:-
Using the correct size setting tool for the size of Drop In anchor used, place the smaller diameter end of the tool into the threaded end of the anchor.
Step 5:-
Strike the end of the setting tool with a hammer until the step in the shank of the setting tool contacts the top of the anchor, at this point the anchor is set and ready to receive the mating threaded rod etc.,
Step 6:-
Place the threaded rod, bolt or stud in the Drop In Anchor and tighten to a snug fit and then nip up until firmly secured., DO NOT overtighten.
Select the correct size IDEAL Fasteners Carbide drill bit for your chosen diameter and length of Drop In Anchor.
Step 2:-
Using a Rotary Hammer tool or a suitable Impact tool, drill the correct size hole into the concrete or masonry substrate to a depth of a minimum of 2mm longer than the fastener length, clean the hole thoroughly with a wire brush, vacuum and/or blow pump.
Avoid drilling the hole too close to the edge of the masonry as the expansion action of the anchor during installation may cause splitting of the masonry.
Step 3:-
Place the anchor into the hole with the threaded end facing outwards, tap the anchor lightly to ensure it is seated in the bottom of the hole.
Step 4:-
Using the correct size setting tool for the size of Drop In anchor used, place the smaller diameter end of the tool into the threaded end of the anchor.
Step 5:-
Strike the end of the setting tool with a hammer until the step in the shank of the setting tool contacts the top of the anchor, at this point the anchor is set and ready to receive the mating threaded rod etc.,
Step 6:-
Place the threaded rod, bolt or stud in the Drop In Anchor and tighten to a snug fit and then nip up until firmly secured., DO NOT overtighten.
Ideal for use in overhead ceiling suspension applications including suspended ceilings, cable trays, pipes, ductwork, sprinkler systems etc., where aggregate often settles towards the underside of the slab during the curing process or reinforcing material
| Size | Coating | Pack Type | 560 Y Drill Size | 590 Y Min. Embedment Depth | 600 Y Internal Thread | Code |
|---|---|---|---|---|---|---|
| M6 x 25mm |
|
|||||
| M8 x 30mm |
|
|||||
| M10 x 40mm |
|
|||||
| M12 x 50mm |
|
|||||
| M16 x 65mm |
|
|||||
| M20 x 80mm |
|
