200100 Treated Timber Screws - Countersunk Rib Head
Designed for fixing into Treated Pine these screws feature an Ideals' EP Electro polymer duplex coating for high corrosion resistance for external use & fixing treated timbers. The self countersinking ribs under the head provide a flush or below the surface finish The needle point self drills into the timber etc., and the coarse thread ensures a strong, secure hold. Larger sizes are available with an optional Square drive.
• Fast drilling and easy to use
• Won't skid, wander or slip
• Head will self countersink into the timber.
• Coarse thread for strong hold in timber substrate
• Available in a range of sizes and lengths for a multitude of applications
• EP High corrosion resistant coating designed for use externally with treated timbers, claddings etc.,
• Complies with AS3566.1 & 2
• Won't skid, wander or slip
• Head will self countersink into the timber.
• Coarse thread for strong hold in timber substrate
• Available in a range of sizes and lengths for a multitude of applications
• EP High corrosion resistant coating designed for use externally with treated timbers, claddings etc.,
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 1,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 1,000 r.p.m.
• Ideal for gates, pickets, fences, lattice, cubbies, outdoor furniture, trellis, etc and general fastening in treated pine, composite boards, softwoods & timber
• Larger sizes are available with an optional Square drive for high torque applications w
• Larger sizes are available with an optional Square drive for high torque applications w

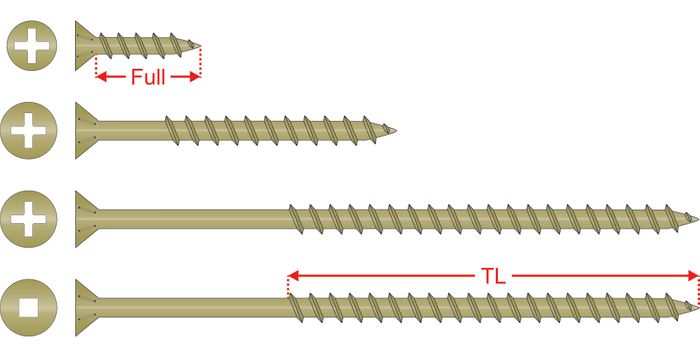

| Size | Coating | Pack Type | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 8g-9 x 20mm |
|
|||||
| 8g-9 x 25mm |
|
|||||
| 8g-9 x 32mm |
|
|||||
| 8g-9 x 35mm |
|
|||||
| 8g-9 x 41mm |
|
|||||
| 8g-9 x 45mm |
|
|||||
| 8g-9 x 51mm |
|
|||||
| 8g-9 x 57mm |
|
|||||
| 8g-9 x 65mm |
|
|||||
| 10g-8 x 50mm |
|
|||||
| 10g-8 x 65mm |
|
|||||
| 10g-8 x 75mm |
|
|||||
| 10g-8 x 75mm Sqre Dve |
|
|||||
| 10g-8 x 100mm |
|
|||||
| 10g-8 x 100mm Sqre Dve |
|
|||||
| 10g-8 x 125mm |
|
|||||
| 10g-8 x 125mm Sqre Dve |
|
|||||
| 10g-8 x 150mm |
|
|||||
| 10g-8 x 150mm Sqre Dve |
|
