400710 Stainless Steel Rivets with Stainless Steel Stem - Countersunk Head
These multi-purpose rivets combine high strength with high corrosion resistance for medium to heavy duty applications. They have high shear and tensile strength with body and mandrel manufactured from 304 Stainless Steel. Recommended for fixing in applications where high corrosion resistance is required these rivets are ideal for use in the food, health and agricultural industries. They feature a 120⁰ countersunk head for use where a flush finish is required.
• Quick and Easy to use
• Can be fixed from one side
• Draws materials together during installation removing air gaps and forming a tight clamping hold
• High Corrosion Resistance
• High shear and tensile strength
• High Fire and Heat Resistance - Retains strength under harsh and extreme temperature conditions
• Hygienic- Easy to clean and sanitise
• Impact Resistance and strength - extremely tough and highly durable material with high impact resistance
• Aesthetic appearance
• Available in a wide range of sizes and lengths
• Complies with IFI-114
• Can be fixed from one side
• Draws materials together during installation removing air gaps and forming a tight clamping hold
• High Corrosion Resistance
• High shear and tensile strength
• High Fire and Heat Resistance - Retains strength under harsh and extreme temperature conditions
• Hygienic- Easy to clean and sanitise
• Impact Resistance and strength - extremely tough and highly durable material with high impact resistance
• Aesthetic appearance
• Available in a wide range of sizes and lengths
• Complies with IFI-114

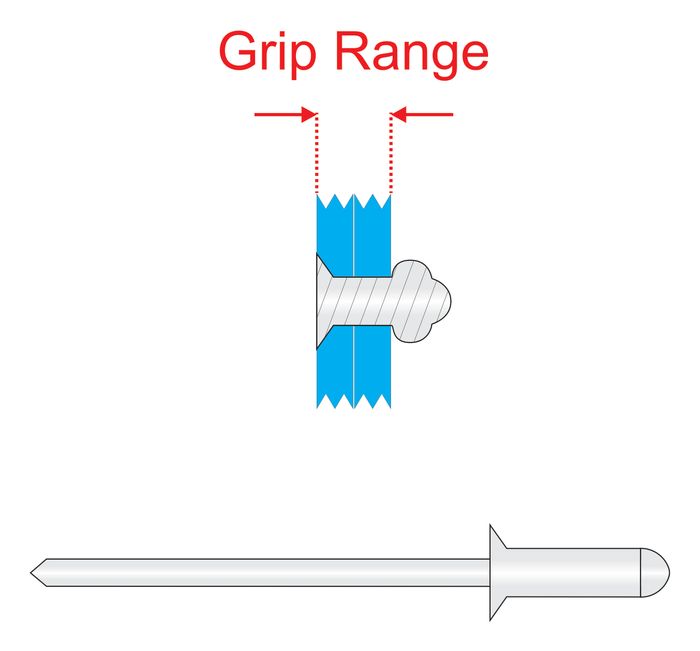

All rivets have a minimum and maximum thickness of materials for which they are designed to fix, this is known as the Grip Range of the rivet. Using a rivet with the correct Grip range for your application will ensure ease of installation and that the maximum holding power is achieved.
Drill the correct size hole for your chosen rivet and ensure the total thickness of the materials being fastened together is within the grip range of the rivet selected.
Drill the correct size hole for your chosen rivet and ensure the total thickness of the materials being fastened together is within the grip range of the rivet selected.
• Ideal for fixing hinges, handles, brackets etc., and for the fabrication of stainless steel products for use in food industry such as work benches, cabinets or other equipment where stainless steel sheeting or materials are used.
• Within medical, h
• Within medical, h
| Size | Pack Type | 480 Y Material | 540 Y US Code | 550 Y Grip Range (mm) | 560 Y Drill Size | Code |
|---|---|---|---|---|---|---|
| 3.2mm x 8.2mm |
|
|||||
| 3.2mm x 9.9mm |
|
|||||
| 3.2mm x 13.0mm |
|
|||||
| 4.0mm x 10.5mm |
|
|||||
| 4.0mm x 13.6mm |
|
|||||
| 4.8mm x 11.1mm |
|
|||||
| 4.8mm x 14.3mm |
|
|||||
| 4.8mm x 17.5mm |
|
|||||
| 4.8mm x 20.7mm |
|
|||||
| 4.8mm x 23.8mm |
|
