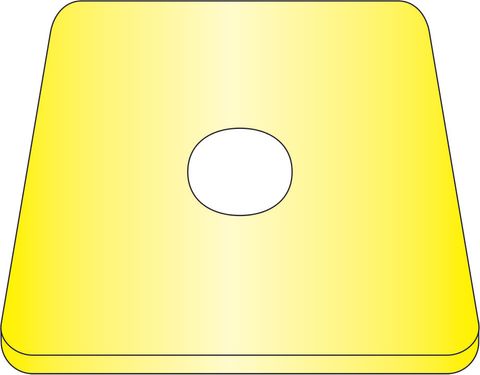

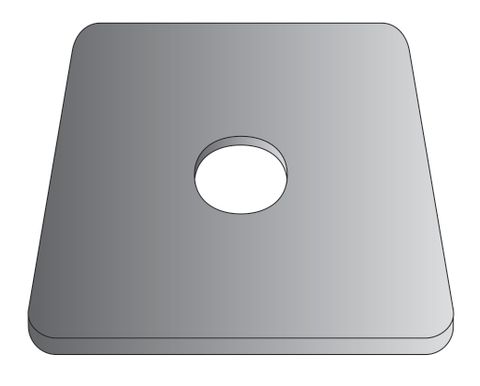

620200 Flat Square Steel Washers
Flat Square washers are designed to provide a clamping force over a wider bearing area than would be the case with a round washer. Used in multiple applications within the building and construction industries. Available in a range of widths and thicknesses and in Galvanised or Zinc Plated finishes.
• Provides a wide bearing area on the surface of the fixture spreading the load and ensuring maximum holding power
Note:
Each washer is designated with a size such as M10, M12 etc., which is not the diameter of the hole in the washer. It indicates the diameter of the bolt that will fit through the washer.
As different types of fasteners have different thread Outer diameters please refer to the Bore Size shown when selecting the correct size washer for your application.
Each washer is designated with a size such as M10, M12 etc., which is not the diameter of the hole in the washer. It indicates the diameter of the bolt that will fit through the washer.
As different types of fasteners have different thread Outer diameters please refer to the Bore Size shown when selecting the correct size washer for your application.
• Recommended for use with Scru-Bolts™ for fixing bottom plates to concrete slabs in steel and timber frame housing.
• Used with galvanised fixings for structural timber connections etc.,
• Available in a wide range of sizes for use in a multitud
• Used with galvanised fixings for structural timber connections etc.,
• Available in a wide range of sizes for use in a multitud
| Size | Coating | Pack Type | 480 Y Material | 610 Y Base Size | 660 Y Hole/Bore Size | 670 Y Thickness | Code |
|---|---|---|---|---|---|---|---|
| M10 x 40mm x 3mm |
|
||||||
| M10 x 50mm x 3mm |
|
||||||
| M10 x 50mm x 5mm |
|
||||||
| M12 x 40mm x 3mm |
|
||||||
| M12 x 50mm x 3mm |
|
||||||
| M12 x 50mm x 5mm |
|
||||||
| M12 x 65mm x 5mm |
|
||||||
| M12 x 75mm x 5mm |
|
||||||
| M14 x 50mm x 3mm |
|
||||||
| M16 x 50mm x 3mm |
|
||||||
| M16 x 50mm x 5mm |
|
||||||
| M20 x 50mm x 5mm |
|
||||||
| M20 x 65mm x 5mm |
|
||||||
| M24 x 75mm x 6mm |
|
||||||
| M30 x 75mm x 6mm |
|
