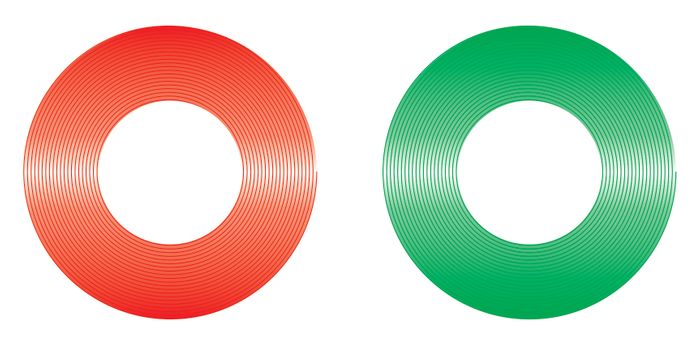

306900 Spaghetti Plastic Plug Rolls
Spaghetti is used in conjunction with a fastener. It provides an economical method of light duty fixing and is suitable for fixing in concrete, solid bricks, blocks etc., and comes in a 50 metre roll which can be cut to suit your individual requirement.
• Quick and Easy to use
• Can be immediately loaded after installation, no downtime waiting for curing etc.,
• Fixture can be easily removed if required
• Apart from load and screw embedment considerations there are no restrictions to fixture thickness
• Can be cut to suit a wide range of embedment depths
• Available in a several diameters for use in a multitude of light duty applications
• Can be immediately loaded after installation, no downtime waiting for curing etc.,
• Fixture can be easily removed if required
• Apart from load and screw embedment considerations there are no restrictions to fixture thickness
• Can be cut to suit a wide range of embedment depths
• Available in a several diameters for use in a multitude of light duty applications
Step 1:-
Select the correct size fastener and Spaghetti combination for the intended application.
Step 2:-
A clearance hole for the selected fastener is recommended in the material, bracket etc being fastened and this will also assist with alignment during installation.
Step 3:-
Place the fixture against the substrate concrete, masonry etc and mark the position for drilling your hole.
Avoid drilling the hole too close to the edge of the masonry as the expansion action of the anchor during installation may cause splitting of the masonry.
Step 4:-
Select the correct size IDEAL Fasteners Carbide drill bit for your chosen diameter and length of Spaghetti you intend to use.
Step 5:-
Using a Rotary Hammer tool or a suitable Impact tool, drill the hole into substrate to a depth that will allow the Spaghetti plug to be fully inserted to your preferred depth PLUS an additional depth of at least 1 to 1.5 times the diameter of the specific Spaghetti Plug being used.
Step 6:-
Ensure the hole is clean of all dust and/or contaminants that may obstruct the insertion of the Spaghetti Plug to the required depth. Using a blow pump or vacuum and/or a wire brush is ideal if the dust cannot be sufficiently removed with the drill bit when drilling the hole.
Step 7:-
Place the Spaghetti plug in the hole and push to your desired depth. Cut the Spaghetti flush with the top of the hole or if that is not possible ensure there is sufficient space at the bottom of the hole to allow it to be pushed or lightly tapped flush after cutting.
Step 8:-
Position the fixture against the substrate with the clearance holes aligned with the drilled holes in the substrate.
Insert the fastener through the fixture and into the Spaghetti Plug in the substrate.
Step 9:-
Drive the fastener home by hand tool or power driver until firmly secured. DO NOT over tighten
Select the correct size fastener and Spaghetti combination for the intended application.
Step 2:-
A clearance hole for the selected fastener is recommended in the material, bracket etc being fastened and this will also assist with alignment during installation.
Step 3:-
Place the fixture against the substrate concrete, masonry etc and mark the position for drilling your hole.
Avoid drilling the hole too close to the edge of the masonry as the expansion action of the anchor during installation may cause splitting of the masonry.
Step 4:-
Select the correct size IDEAL Fasteners Carbide drill bit for your chosen diameter and length of Spaghetti you intend to use.
Step 5:-
Using a Rotary Hammer tool or a suitable Impact tool, drill the hole into substrate to a depth that will allow the Spaghetti plug to be fully inserted to your preferred depth PLUS an additional depth of at least 1 to 1.5 times the diameter of the specific Spaghetti Plug being used.
Step 6:-
Ensure the hole is clean of all dust and/or contaminants that may obstruct the insertion of the Spaghetti Plug to the required depth. Using a blow pump or vacuum and/or a wire brush is ideal if the dust cannot be sufficiently removed with the drill bit when drilling the hole.
Step 7:-
Place the Spaghetti plug in the hole and push to your desired depth. Cut the Spaghetti flush with the top of the hole or if that is not possible ensure there is sufficient space at the bottom of the hole to allow it to be pushed or lightly tapped flush after cutting.
Step 8:-
Position the fixture against the substrate with the clearance holes aligned with the drilled holes in the substrate.
Insert the fastener through the fixture and into the Spaghetti Plug in the substrate.
Step 9:-
Drive the fastener home by hand tool or power driver until firmly secured. DO NOT over tighten
• Ideal for light duty fixing applications such as signs, house numbers, mail boxes etc., to concrete, solid and hollow brick, solid and hollow block, stone.
| Size | Pack Type | 490 Y Description/Features | 560 Y Drill Size | Code |
|---|---|---|---|---|
| M5 x 50m Roll Green |
|
|||
| M5.5 x 50m Roll Red |
|
