150050 TimberMates® - Hex & 25mm Multi-Seal
These screws are designed for self-drilling and fastening into timber or thin metal up to 0.55mm. Assembled with 25mm Multi-Seal Washers they are designed for fixing metal roofing profiles, insulated roofing panels, ridge capping's and flashings to timber purlins. Popular sizes are stocked painted to match prepainted metal roofing & cladding profile colours. All other sizes and colour combinations are available upon request. Use longer lengths for insulated roofing applications
• Assembled with Multi-Seal for high strength, waterproof connections
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a wide range of sizes and lengths
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a wide range of sizes and lengths
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• For fixing metal roofing profiles to timber battens in higher wind classifications
• Longer lengths for crest fixing insulated roofing panels to timber battens
• Longer lengths for crest fixing insulated roofing panels to timber battens

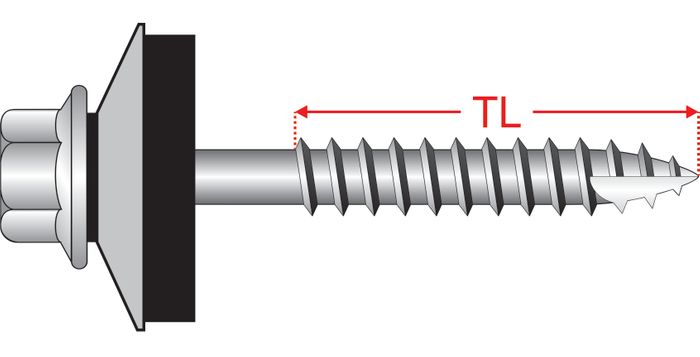

| Size | Coating | Pack Type | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 14g-10 x 50mm |
|
|||||
| 14g-10 x 65mm |
|
|||||
| 14g-10 x 125mm |
|
|||||
| 14g-10 x 150mm |
|
|||||
| 14g-10 x 175mm |
|
|||||
| 14g-10 x 200mm |
|
|||||
| 14g-10 x 230mm |
|
|||||
| 14g-10 x 265mm |
|
