120240 SteelMates® - Cyclone Assemblies for Square Rib
For crest fixing square rib roofing profiles to metal purlins in cyclonic regions. These assemblies comprise a heavy duty #14 Gauge fastener with a metal cyclone plate and an EPDM sealing washer. Popular sizes are stocked painted to match prepainted metal roofing & cladding profile colours. All other sizes and colour combinations are available upon request. Use longer lengths for insulated roofing applications.
• Assembled with Cyclone washers to suit Square Rib roofing profiles for cyclone prone areas
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in other sizes and lengths upon request
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in other sizes and lengths upon request
• High corrosion resistant coatings available for all atmospheric environments
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• For fixing square rib metal roofing profiles to steel purlins in cyclone prone areas
• Longer lengths for crest fixing square rib insulated roofing panels to steel purlins in cyclone prone areas
• Longer lengths for crest fixing square rib insulated roofing panels to steel purlins in cyclone prone areas

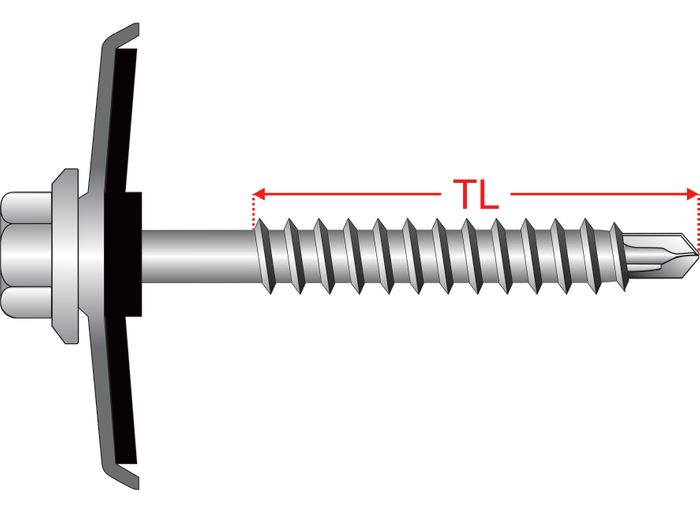

| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 14g-10 x 53mm |
|
|||||
| 14g-10 x 65mm |
|
