170570 Stainless DeckMates™ - Countersunk Rib Head
Stainless Deckmates™ are specifically designed for fixing timber decking to timber joists. Featuring a Square drive & ribs under head, recess cam out & driving torque are greatly reduced. Ideally suited for architectural applications where a long life, high quality aesthetically pleasing appearance is critical. Popular sizes are also available in Collated coils, refer to Collated screws section.
• Stainless DeckMates™ provide exceptional corrosion resistance combined with fast and easy installation into timber substrates
• Made from 304 Stainless Steel
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Suitable for a multitude of applications
• Complies with AS3566.1 & 2
• Made from 304 Stainless Steel
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Suitable for a multitude of applications
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
• Timber decking, battens, cladding, picket fences, timber gates, fencing etc.,
• Fixing in highly corrosive environments or where an aesthetically pleasing, long lasting finish is required.
• Fixing in highly corrosive environments or where an aesthetically pleasing, long lasting finish is required.

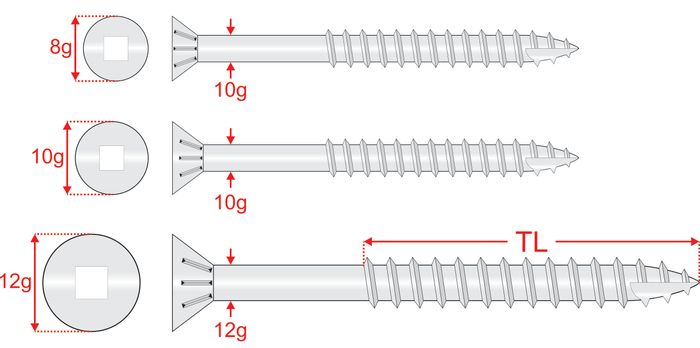

| Size | Pack Type | 480 Y Material | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | 570 Y Head Diam. | Code |
|---|---|---|---|---|---|---|---|
| 10g-12 x 40mm |
|
||||||
| 10g-12 x 50mm |
|
||||||
| 10g-12 x 65mm |
|
||||||
| 12g-11 x 65mm |
|
||||||
| 8g-9 x 55mm |
|
