170010 Stainless SteelMates® - Hex & 19mm Aluminium Bonded Washer
Stainless SteelMates® are unique Stainless Steel Self Drilling Screws for fixing to metal in highly corrosive environments where a long life fastener is required. The unique BiMetal drill point provides a truly 300 Series fixing that drills through steel. The 19mm Aluminium EPDM Bonded Seal provides a water tight seal. Made from 304 or 316 Grade SS for the ultimate in Corrosion Resistance. Can be painted upon request to match prepainted metal roofing & cladding colours.
• Stainless SteelMates® provide exceptional corrosion resistance combined with extremely fast drilling through steel and other metals
• Assembled with Aluminium Bonded Washers for waterproof connections
• Made from genuine 304 or 316 Non Magnetic, Stainless Steel, beware of magnetic imitations
• Instant piercing
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• Complies with AS3566.1 & 2
• Assembled with Aluminium Bonded Washers for waterproof connections
• Made from genuine 304 or 316 Non Magnetic, Stainless Steel, beware of magnetic imitations
• Instant piercing
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 1,800~2,000 r.p.m when fixing into steel.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 1,800~2,000 r.p.m when fixing into steel.
• Designed for fixing long life roofing and cladding materials such as aluminium or stainless steel to steel purlins in highly corrosive environments
• Also ideally suited to a multitude of fixing applications where a long life, waterproof fixing is r
• Also ideally suited to a multitude of fixing applications where a long life, waterproof fixing is r

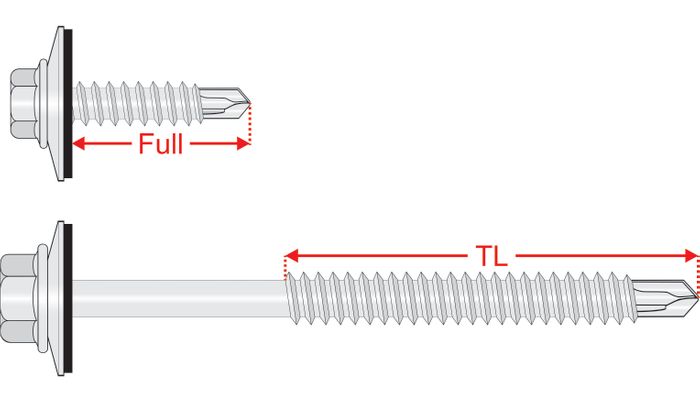

| Size | Pack Type | 480 Y Material | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 10g-16 x 19mm |
|
|||||
| 10g-16 x 25mm |
|
|||||
| 10g-16 x 35mm |
|
|||||
| 12g-14 x 25mm |
|
|||||
| 12g-14 x 45mm |
|
|||||
| 12g-14 x 65mm |
|
|||||
| 12g-14 x 125mm |
|
|||||
| 14g-14 x 25mm |
|
|||||
| 14g-14 x 35mm |
|
|||||
| 14g-14 x 52mm |
|
|||||
| 14g-14 x 70mm |
|
|||||
| 14g-14 x 80mm |
|
|||||
| 14g-14 x 100mm |
|
