150140 TimberMates® - Countersunk Rib Head
These screws are designed for self-drilling and fastening into timber but are also capable of self-drilling through thin metal up to approximately 0.55mm. They feature a Type 17 self-drilling point for drilling into timber and Countersunk Ribbed head. They have self countersinking ribs under the head to ensure a flush finish in the material being fastened.
• Fast drilling and easy to use
• Self-Countersinking into timber, fibre cement board, MDF etc.,
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• Zinc Plated suitable for internal use but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• Self-Countersinking into timber, fibre cement board, MDF etc.,
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• Zinc Plated suitable for internal use but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• Ideal for attaching fibre cement sheets, panels or boards to timber.
• May also be used for fixing timber & composite boards to timber.
• May also be used for fixing timber & composite boards to timber.

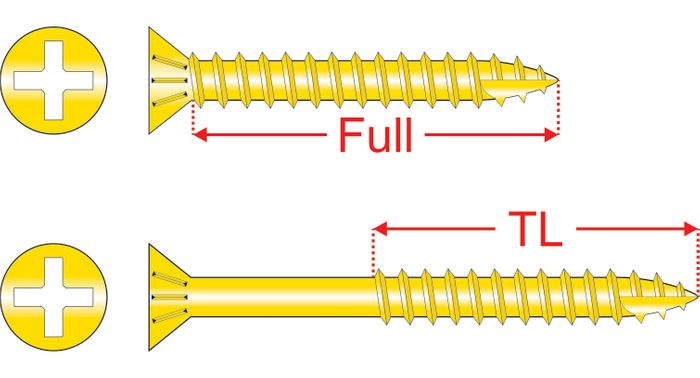

| Size | Coating | Pack Type | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 8g-15 x 30mm |
|
|||||
| 8g-15 x 40mm |
|
