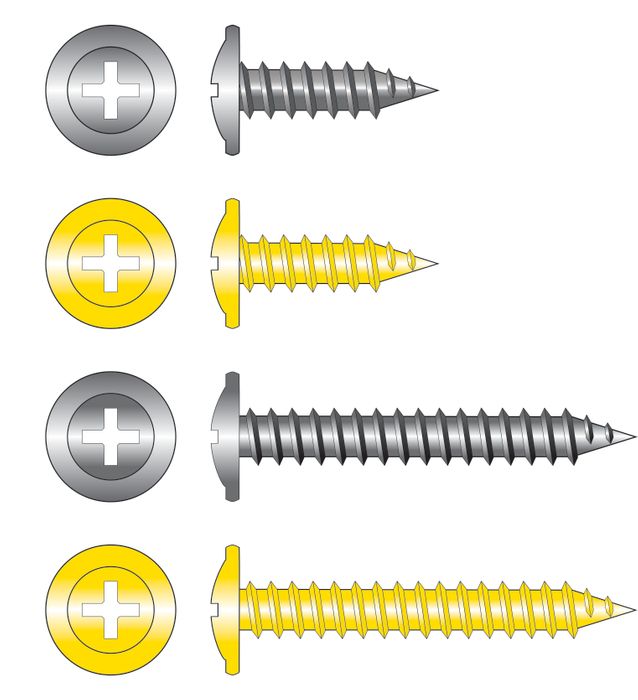

200300 StitchMates® - Large Wafer (Button) Head, Needle Point, Twinfast Thread
These screws feature a sharp Needle point for fast drilling, a Twinfast thread for rapid installation and a wide flanged, low profile head which provides a large bearing area on the materials being fixed. This makes them ideally suited to fixing thin softer type materials such as plastic or fibreglass sheeting or panels to thin metal up to 0.75mm thick but will also self drill and fasten into timber.
• Instant piercing
• Fast drilling and easy to use
• Won't skid, wander or slip
• Available in a range of lengths and coatings for a multitude of applications both internally and externally
• Featuring EP+ Electro polymer duplex coating for high corrosion resistance for external use & fixing treated timbers
• Use Zinc Plated (ZP) for internal applications or may be used externally if painted or otherwise protected
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• Won't skid, wander or slip
• Available in a range of lengths and coatings for a multitude of applications both internally and externally
• Featuring EP+ Electro polymer duplex coating for high corrosion resistance for external use & fixing treated timbers
• Use Zinc Plated (ZP) for internal applications or may be used externally if painted or otherwise protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is 1,000 r.p.m for fixing into timber and 2,000+ r.p.m. for fixing into thin metal up to 0.75mm thick.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is 1,000 r.p.m for fixing into timber and 2,000+ r.p.m. for fixing into thin metal up to 0.75mm thick.
• Commonly used to attached fascia and gutter brackets in timber framed housing as well as a variety of sheet metal applications.
• Also used in cabinetmaking and for fixing plumbing & electrical fittings to timber or thin metal.
• Also used in cabinetmaking and for fixing plumbing & electrical fittings to timber or thin metal.
Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
---|---|---|---|---|---|---|---|
8g-15 x 12mm |
|
||||||
8g-15 x 16mm |
|
||||||
8g-15 x 20mm |
|
||||||
8g-15 x 25mm |
|
||||||
8g-15 x 32mm |
|
||||||
8g-15 x 40mm |
|
