150100 TimberMates® - Bugle Rib Head

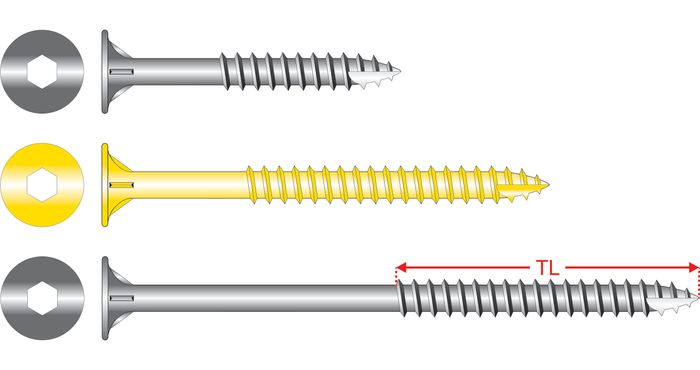

These screws feature a Type 17 self-drilling point for drilling into timber. They are designed for self-drilling and fastening into timber but are also capable of self-drilling through thin metal up to approximately 0.55mm. They feature a 5mm Internal Hex (Allen Key) drive and a self-countersinking Bugle Rib head making them very easy to drive & countersink. Best driven with a high torque, low speed power drill. Use Galvanized coating for external applications.
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a wide range of lengths
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a wide range of lengths
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended to be driven at low speed with a high torque power tool or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended to be driven at low speed with a high torque power tool or screw driver.
• Originally designed for and still extensively used for attaching timber battens to timber trusses in cyclone prone areas
• Ideal for fixing timber to timber in pergolas, outdoor furniture, landscaping applications using timber in retaining walls, ga
• Ideal for fixing timber to timber in pergolas, outdoor furniture, landscaping applications using timber in retaining walls, ga
| Size | Coating | Pack Type | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | Code |
|---|---|---|---|---|---|
| 14g-10 x 50mm |
|
||||
| 14g-10 x 75mm |
|
||||
| 14g-10 x 100mm |
|
||||
| 14g-10 x 125mm |
|
||||
| 14g-10 x 150mm |
|
||||
| 14g-10 x 200mm |
|
