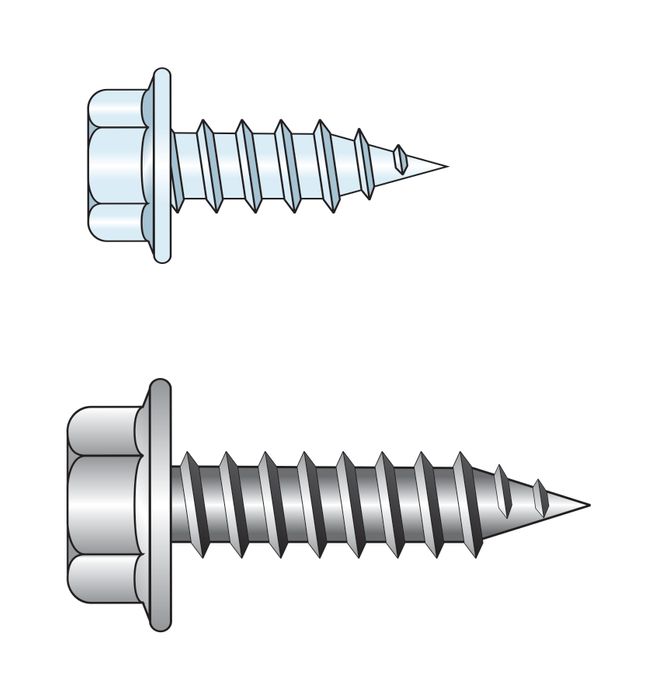

200350 StitchMates® - Hex Head, Needle Point, Twinfast Thread
These screws feature a sharp Needle point for fast drilling, a Twinfast thread for rapid installation when fixing to thin metal up to 0.75mm thick but will also self drill and fasten into timber. Coated Zinc Clear (ZC) provides a bright silver finish to match steel sheet metal on internal applications and use 30+ coating for external applications.
• Instant piercing
• Fast drilling and easy to use
• Won't skid, wander or slip
• Minimal drilling swarf
• Available in a several sizes, lengths and coatings for a multitude of applications both internally and externally
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• Won't skid, wander or slip
• Minimal drilling swarf
• Available in a several sizes, lengths and coatings for a multitude of applications both internally and externally
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is 1,000 r.p.m for fixing into timber and 2,000+ r.p.m. for fixing into thin metal up to 0.75mm thick.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is 1,000 r.p.m for fixing into timber and 2,000+ r.p.m. for fixing into thin metal up to 0.75mm thick.
• Ideal for use in sheet metal applications in including ductwork, air-conditioning, heating and cooling units, metal capping's and flashings etc.,
Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
---|---|---|---|---|---|---|
8g-15 x 12mm |
|
|||||
10g-12 x 20mm |
|
