200150 MultiMates® - Bugle Head, Needle Point, Twinfast Thread
Originally designed for fixing plasterboard to thin steel or timber studs, the curved underside of the head eliminates tearing of the paper lining on the board during installation. Featuring a sharp Needle point for fast drilling and a Twinfast thread for rapid installation these screws are now extremely popular as a general purpose, economical fixing for a multitude of applications. Popular sizes are also available in Collated plastic strips, refer to Collated screws section.
• Instant piercing
• Fast drilling and easy to use
• Won't skid, wander or slip
• Minimal drilling swarf
• Available in a range of sizes, lengths and coatings for a multitude of applications both internally and externally
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• Won't skid, wander or slip
• Minimal drilling swarf
• Available in a range of sizes, lengths and coatings for a multitude of applications both internally and externally
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is 1,000 r.p.m for fixing into timber and 2,000+ r.p.m. for fixing into thin metal up to 0.75mm thick.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is 1,000 r.p.m for fixing into timber and 2,000+ r.p.m. for fixing into thin metal up to 0.75mm thick.
• Ideal for use as a light duty wood screw for attaching plumbing & electrical fittings, brackets, light fittings, conduit clips, saddles, curtain tracks, hinges etc, & general fastening to timber & thin metal up to 0.75mm thick.
• Very popular for us
• Very popular for us

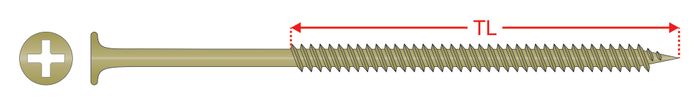

| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|---|
| 6g-18 x 20mm |
|
||||||
| 6g-18 x 25mm |
|
||||||
| 6g-18 x 32mm |
|
||||||
| 6g-18 x 40mm |
|
||||||
| 6g-18 x 45mm |
|
||||||
| 6g-18 x 50mm |
|
||||||
| 7g-16 x 20mm |
|
||||||
| 7g-16 x 25mm |
|
||||||
| 7g-16 x 30mm |
|
||||||
| 7g-16 x 40mm |
|
||||||
| 7g-16 x 45mm |
|
||||||
| 7g-16 x 50mm |
|
||||||
| 8g-15 x 65mm |
|
||||||
| 8g-15 x 75mm |
|
||||||
| 10g-12 x 100mm |
|
||||||
| 10g-12 x 130mm |
|
||||||
| 10g-12 x 150mm |
|
