150110 TimberMates® - Wafer Head
These screws feature a Low profile head for a smooth finish with less obstruction. They are designed for self-drilling and fastening into timber but are also capable of self-drilling through thin metal up to approximately 0.55mm. Can be driven by hand or power tool. Can be painted upon request to match all popular prepainted metal roofing, cladding & fencing profile colours if required. Available in Zinc Yellow or MGZA for external use.
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes, lengths and coatings for a multitude of applications both internally and externally
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes, lengths and coatings for a multitude of applications both internally and externally
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• Ideal for fixing signs, brackets, hinges, fencing and cladding materials to timber
• Can be used for timber pickets or palings to timber and other timber to timber applications
• Universal screw for general fastening into timber
• Can be used for timber pickets or palings to timber and other timber to timber applications
• Universal screw for general fastening into timber

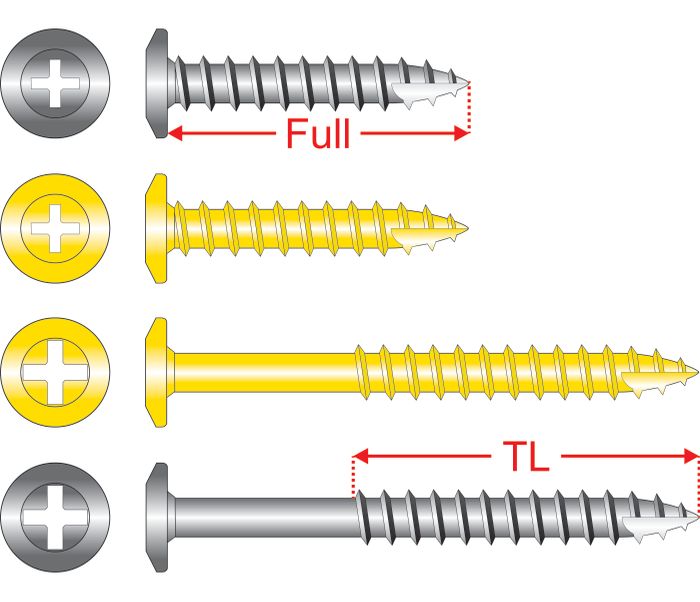

| Size | Coating | Pack Type | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 10g-12 x 25mm |
|
|||||
| 10g-12 x 35mm |
|
|||||
| 10g-12 x 45mm |
|
