120510 SteelMates® - Super 500™ Hex Seal
These screws feature an extended drilling flute for drilling into steel up to 12.5mm thick. Assembled with a seal to provide rain proofing. Longer lengths are designed for fixing insulated roofing panels to heavy steel purlins. If not already stocked painted to match all popular prepainted metal roofing, cladding & fencing profile colours they can be painted upon request.
• Eliminates the need to pre drill pilot holes in steel up to 12.5mm thick
• Assembled with EPDM Seal for waterproof connections
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings for external use
• Complies with AS3566.1 & 2
• Assembled with EPDM Seal for waterproof connections
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings for external use
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
• For use in applications requiring a waterproof seal
• Applications include valley fixing wall cladding and crest fixing roofing profiles to steel up to 12.5mm thick.
Also available without seal for applications where waterproofing is not required,
• Applications include valley fixing wall cladding and crest fixing roofing profiles to steel up to 12.5mm thick.
Also available without seal for applications where waterproofing is not required,

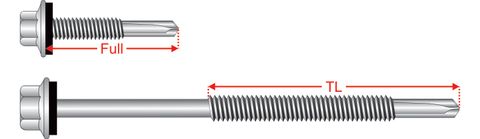

| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 12g-24 x 32mm |
|
|||||
| 12g-24 x 50mm |
|
|||||
| 12g-24 x 65mm |
|
|||||
| 12g-24 x 75mm |
|
|||||
| 14g-20 x 100mm |
|
|||||
| 14g-20 x 150mm |
|
|||||
| 14g-20 x 200mm |
|
|||||
| 14g-20 x 250mm |
|
|||||
| 14g-20 x 300mm |
|
