150130 TimberMates® - Countersunk Head
These screws are designed for self-drilling and fastening into timber but are also capable of self-drilling through thin metal up to approximately 0.55mm. They feature a Type 17 self-drilling point for drilling into timber and Countersunk head for a flush finish in the fixture being attached. With a Phillips drive which provides a deep positive recess for easy driving and can be driven by hand or power tool. Popular sizes are also available in Collated coils, refer to Collated screws section.
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• Ideal for attaching hinges, brackets etc to timber
• Composite flooring sheets to timber
• Decking to timber
• General timber to timber applications.
• Composite flooring sheets to timber
• Decking to timber
• General timber to timber applications.

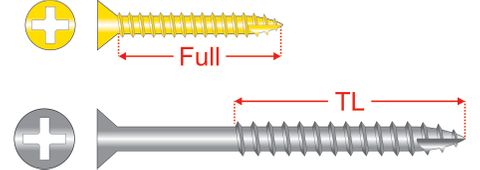

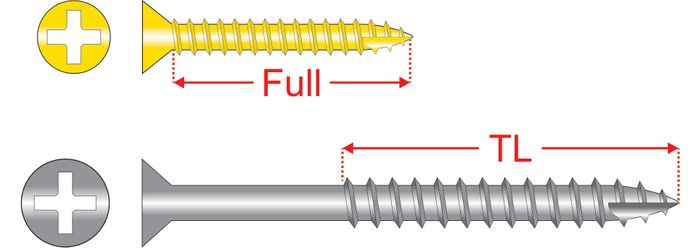

| Size | Coating | Pack Type | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 6g-18 x 16mm |
|
|||||
| 6g-18 x 20mm |
|
|||||
| 6g-18 x 25mm |
|
|||||
| 6g-18 x 30mm |
|
|||||
| 6g-18 x 50mm |
|
|||||
| 8g-15 x 20mm |
|
|||||
| 8g-15 x 25mm |
|
|||||
| 10g-12 x 30mm |
|
|||||
| 10g-12 x 40mm |
|
|||||
| 10g-12 x 50mm |
|
|||||
| 10g-12 x 60mm |
|
|||||
| 10g-12 x 75mm |
|
