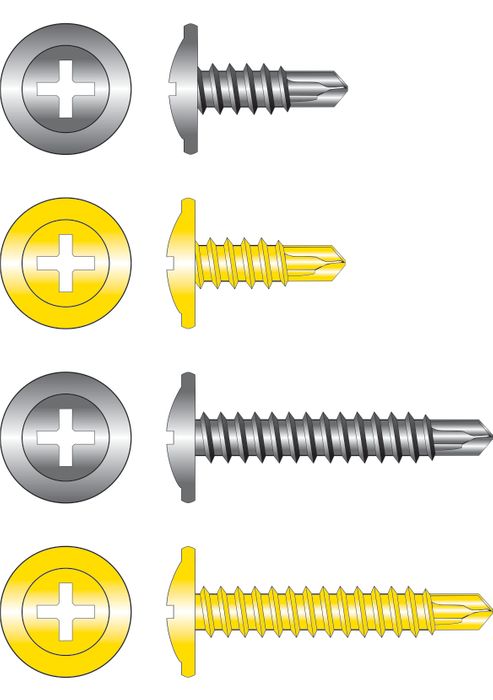

120410 SteelMates® - Large Wafer (Button) Head
These screws combine a Low profile head with a flange to provide a larger diameter head. Ideal for fixing soft, flat materials to metal where a large bearing area is required. Use ZP coating for internal applications and EP+ Grey for external applications where higher corrosion resistance is required. Can be painted upon request to match all popular prepainted metal roofing, cladding & fencing profile colours if required.
• Fast drilling and easy to use
• Low profile head for reduced obstruction
• Available in a range of lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• Low profile head for reduced obstruction
• Available in a range of lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• Ideal for fixing soft, flat materials to metal where a large bearing area is required
• Suitable for attaching fibreglass or plastic sheeting or similar materials to metal.
• Suitable for attaching fibreglass or plastic sheeting or similar materials to metal.
| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 8g-18 x 12mm |
|
|||||
| 8g-18 x 16mm |
|
|||||
| 8g-18 x 20mm |
|
|||||
| 8g-18 x 25mm |
|
|||||
| 8g-18 x 32mm |
|
