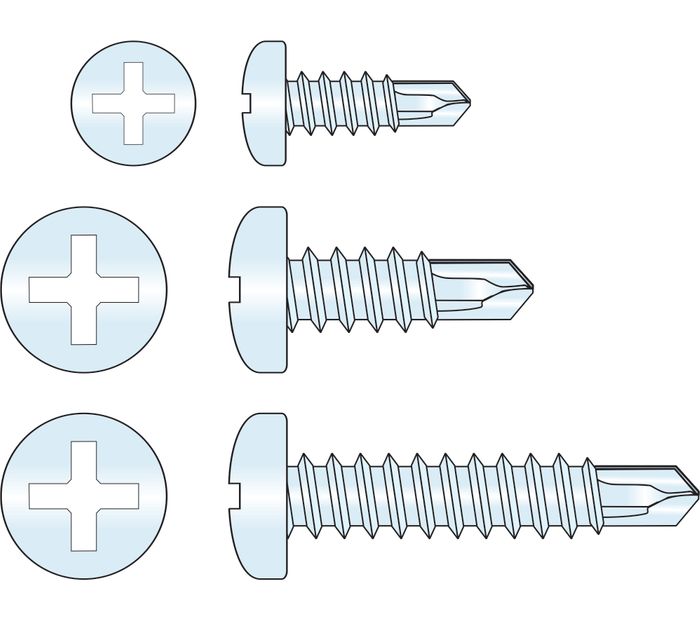

120420 SteelMates® - Pan Head
These screws feature a small diameter head with Phillips drive and are ideal for fixing in sheet metal applications. Zinc Clear (ZC) provides a bright silver finish to match steel sheet metal. Can be painted upon request to match all popular prepainted metal roofing, cladding & fencing profile colours if required.
• Pan head provides a neat, tidy and strong connection
• Fast drilling and easy to use
• Available in a several sizes and lengths
• Zinc Plated finish which is suitable for internal use but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• Available in a several sizes and lengths
• Zinc Plated finish which is suitable for internal use but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• An ideal general purpose screw for fixing sheet materials, signs, etc., to metal
• Commonly used in heating and air-conditioning applications, Sheetmetal applications
• Also ideal for automotive applications
• Commonly used in heating and air-conditioning applications, Sheetmetal applications
• Also ideal for automotive applications
| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 6g-20 x 12mm |
|
|||||
| 8g-18 x 12mm |
|
|||||
| 8g-18 x 16mm |
|
|||||
| 8g-18 x 20mm |
|
