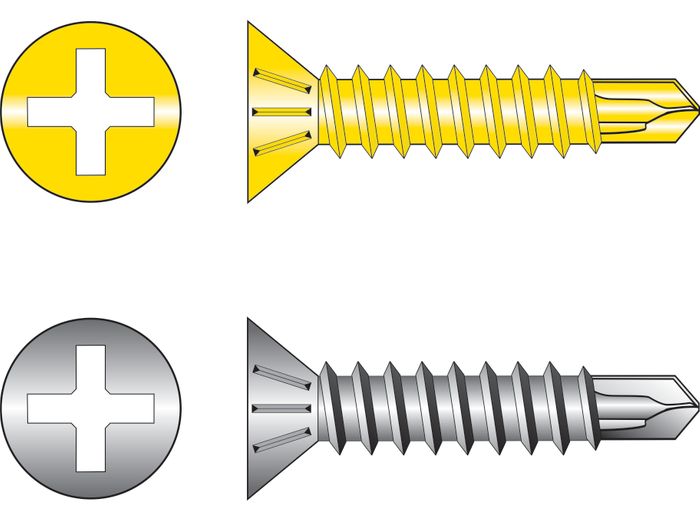

120340 SteelMates® - Countersunk Rib Head
These screws feature self countersinking ribs under the head and are designed for fixing cement sheet or composite timber panels to steel substrates. Popular sizes are also available in Collated plastic strips, refer to Collated screws section.
• Fast drilling and easy to use
• Ribbed Countersunk head self countersinks into fibre cement board or timber
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• Ribbed Countersunk head self countersinks into fibre cement board or timber
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• Ideal for attaching fibre cement sheets, panels or boards to metal.
• May also be used for fixing timber to metal for picket gates or fences etc, but a clearance hole may need to be drilled for thicker or denser timbers.
• Always use MGZA coatin
• May also be used for fixing timber to metal for picket gates or fences etc, but a clearance hole may need to be drilled for thicker or denser timbers.
• Always use MGZA coatin
| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 8g-18 x 20mm |
|
|||||
| 8g-18 x 25mm |
|
|||||
| 8g-18 x 30mm |
|
