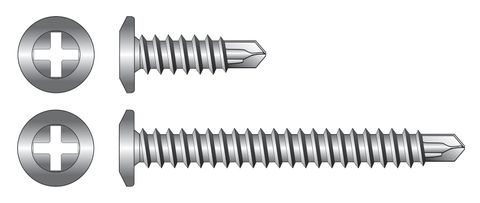

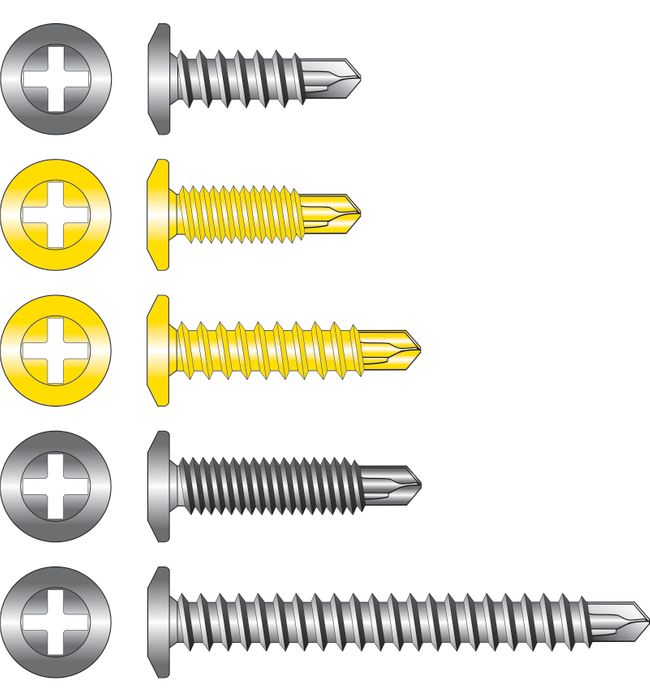

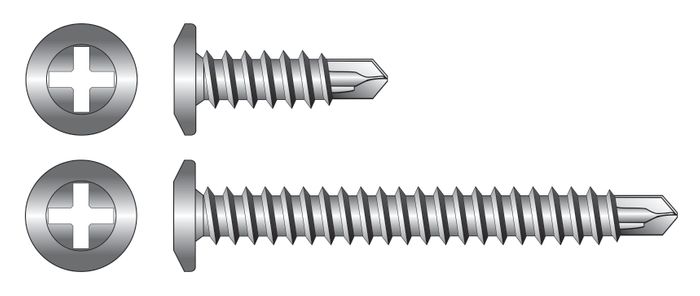

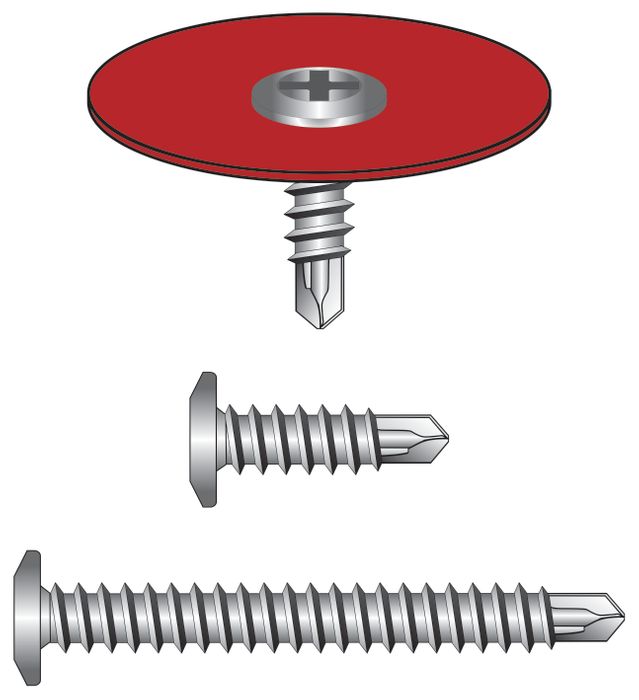

120400 SteelMates® - Wafer Head
These screws feature a Low profile head for a smooth finish with less obstruction. Popular sizes are stocked painted to match all popular prepainted metal roofing, cladding & fencing profile colours. All other size/colour combinations can be painted upon request. Available in Zinc Yellow or MGZA for external use.
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• High Shear Strength
• High Withdrawal strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• Ideal for fixing signs, brackets, hinges, fencing and cladding materials to steel/metal
• Use a coarse thread for fast installation and increased holding power when fixing into thinner metal materials. Also available with fine thread pitch for lower
• Use a coarse thread for fast installation and increased holding power when fixing into thinner metal materials. Also available with fine thread pitch for lower
| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 8g-18 x 12mm |
|
|||||
| 10g-16 x 16mm |
|
|||||
| 10g-24 x 16mm |
|
|||||
| 10g-16 x 22mm |
|
|||||
| 10g-24 x 22mm |
|
|||||
| 10g-16 x 30mm |
|
|||||
| 10g-24 x 30mm |
|
|||||
| 10g-16 x 40mm |
|
|||||
| 10g-16 x 50mm |
|
