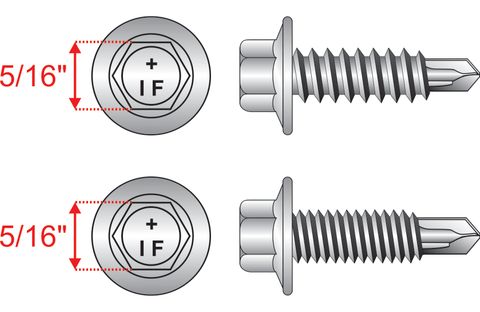

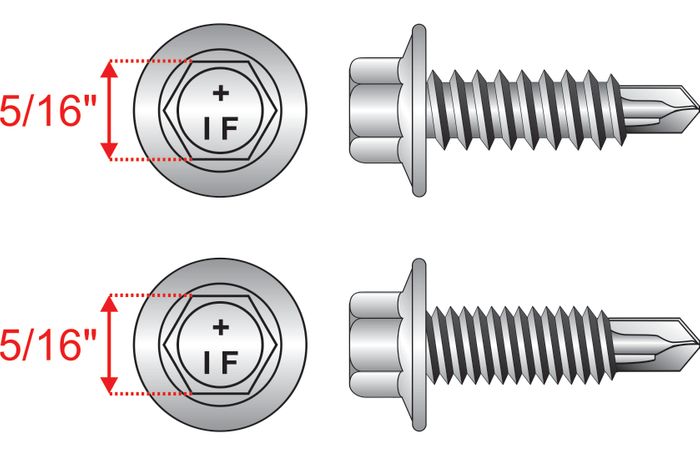

120250 SteelMates® - Hex Head, Fine Thread
These screws feature a fine thread for reduced driving torque when fixing into thicker metal materials. The Hex Washer head provides a heavy duty, stable driving fixing with a wide surface clamping area. If not already stocked painted to match all popular prepainted metal roofing, cladding & fencing profile colours they can be painted upon request. Matt and Metallic colours also available upon request.
• Fine thread provides reduced driving torque, less stress on tools and installer
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes, lengths and coatings for a multitude of applications both internally and externally
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes, lengths and coatings for a multitude of applications both internally and externally
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ Push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• Designed for fixing into thicker steel substrates
• Larger diameters for heavy duty steel fixing
• Larger diameters for heavy duty steel fixing

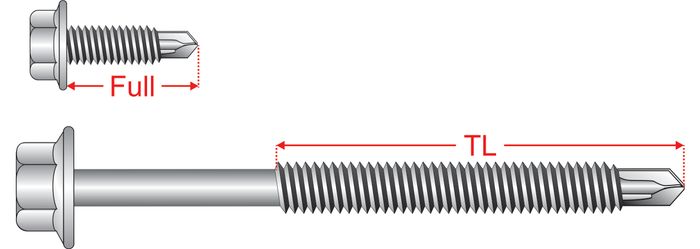

| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 10g-24 x 16mm |
|
|||||
| 10g-24 x 22mm |
|
|||||
| 12g-24 x 20mm |
|
|||||
| 12g-24 x 25mm |
|
|||||
| 14g-20 x 22mm |
|
|||||
| 14g-20 x 30mm |
|
|||||
| 14g-20 x 45mm |
|
|||||
| 14g-20 x 65mm |
|
|||||
| 14g-20 x 75mm |
|
