120360 SteelMates® - Bugle Head
Originally designed for fixing plasterboard to steel studs or frames up to 2.3mm thick, these screws can be used in a variety of applications including fixing hinges, brackets, curtain tracks etc. to metal. The curved underside of the head prevents tearing of exterior paper on plasterboard sheeting. Popular sizes are also available in Collated plastic strips, refer to Collated screws section.
• Fast drilling and easy to use
• Won't damage facing of plasterboard sheets
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• Won't damage facing of plasterboard sheets
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• For fixing plasterboard to steel studs or frames up to 2.3mm thick
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected

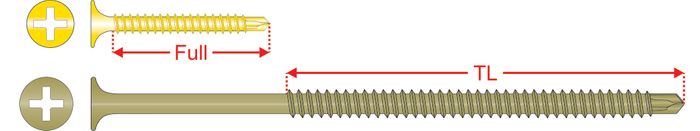

| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 6g-20 x 25mm |
|
|||||
| 6g-20 x 30mm |
|
|||||
| 6g-20 x 45mm |
|
|||||
| 8g-18 x 75mm |
|
|||||
| 10g-16 x 100mm |
|
|||||
| 10g-16 x 130mm |
|
