120380 SteelMates® - Countersunk Head
These screws are ideal for attaching hinges, brackets etc. to metal. May also be used for attaching timber to metal, however a clearance hole may need to be drilled when fixing thicker or denser timbers. Use Zinc Plated (ZP) for internal applications and MGZA/EP+ 3 for external use & when fixing treated timbers.
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings are recommended for external use
• The Zinc Plated finish is recommended for internal use only but can be used externally if adequately painted or protected
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m.
• Typically used for fixing timber to steel
• Also suitable for fixing metal fixtures (with a countersunk recess for the screw head) to steel e.g. brackets, heavy duty hinges etc.,
• These screws are not recommended for fixing Treated Pine decking
• Also suitable for fixing metal fixtures (with a countersunk recess for the screw head) to steel e.g. brackets, heavy duty hinges etc.,
• These screws are not recommended for fixing Treated Pine decking

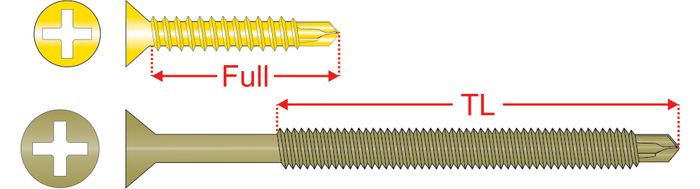

| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 6g-20 x 20mm |
|
|||||
| 8g-18 x 25mm |
|
|||||
| 10g-24 x 25mm |
|
|||||
| 10g-24 x 30mm |
|
|||||
| 10g-24 x 40mm |
|
|||||
| 10g-24 x 50mm |
|
|||||
| 10g-24 x 65mm |
|
